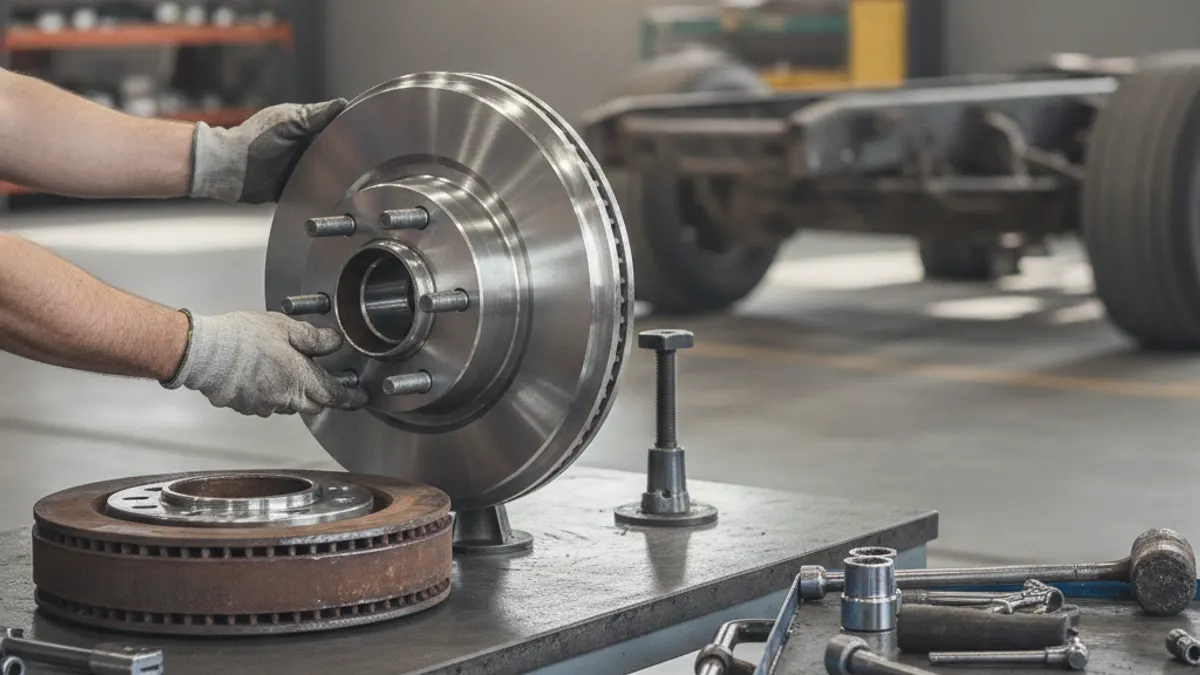

Truck Brake Drum Replacement: When, Why, and How

Replace a heavy-truck brake drum when its measured inside diameter reaches the discard limit stamped on the casting, when it is cracked through to the friction surface, or when heat damage or out-of-round wear has condemned it regardless of size. Drums come off in axle-end pairs — never one side alone — and new shoes and hardware go on at the same time so the friction pair beds evenly. Every drum carries a maximum diameter, usually marked "MAX DIA" or "discard", on the outer edge; once the bore reaches that number the drum is scrap, however good the surface looks.

When a truck brake drum needs replacing

Air brake foundation drums wear from the inside out. Every stop takes material off the friction surface, so the bore grows. That does two things at once: the shoes travel farther to make contact, which the slack adjuster compensates for, and the remaining wall gets thinner, so it absorbs less heat. A thin drum runs hotter, and a hot drum cracks. Wear rates and drum construction are covered in the truck brake drums overview.

These are the conditions that condemn a drum:

• At or over discard diameter. Heavy-truck drums are commonly 16.5 in. x 7 in. or 16.5 in. x 8-5/8 in. nominal, with a discard limit typically around 0.120 in. over nominal. Read the number on the drum you actually have.
• Cracks. Any crack reaching the friction surface or running through the wall is scrap. Fine heat checking is normal wear; a crack you can catch a fingernail in is not.
• Heat spotting. Bluish, hardened patches sit proud of the surface, chew linings, and cause grabbing. They cannot be machined out reliably.
• Out-of-round or bell-mouthed. A bell-mouthed drum contacts only one end of the lining and produces judder felt through the cab and steering. An air system gives no hydraulic feedback, so nothing shows up at the treadle.
• Deep scoring, damaged bolt holes, or a distorted mounting face.

Measuring the drum correctly

Use a drum micrometer, not a tape. Take readings at three or more positions around the bore and at two depths, near the open edge and near the closed edge. Record the largest reading; that is the working number.

Replacing a brake drum: the sequence

This is the general order for an S-cam foundation brake axle end.

1. Park, chock, and secure. Level ground, chock the wheels you are not lifting.
2. Cage the spring brakes, then dump the air. Build to full charge so the parking springs release, cage each spring brake chamber with its release bolt, and only then drain the air. Until the spring is caged the shoes stay clamped and the drum will not come off. See how to cage a brake chamber.
3. Lift and support on stands. Never work under a jack alone.
4. Remove the wheels. Note the fastener style — stud-piloted cap nuts or hub-piloted flange nuts — because torque and procedure differ.
5. Back off the slack adjuster. Retract the shoes so the drum clears the lining. On automatic slack adjusters, back off exactly the way the maker specifies; forcing them damages the internal clutch.
6. Pull the drum. Outboard drums come off after the wheel. Inboard drums need the hub removed: pull the hub cap, remove the spindle nut hardware, and slide the hub and bearings off the spindle.
7. Inspect everything behind the drum. Shoes, return springs, anchor pins, rollers, cam bushings, the S-cam, the wheel seal, the chamber and pushrod. Worn cam bushings and tired springs are why "new" brakes drag or wear crooked.
8. Fit new shoes and hardware. Renew linings, springs, and the hardware kit as a set on both ends of the axle, matched friction rating side to side. Detail in the guide to replacing truck brake shoes.
9. Install the new drum. Remove all rust preventative from the friction surface with a suitable solvent, not just a rag wipe, and clean the hub mating face — rust there causes runout.
10. Reassemble the hub and set the bearings. Follow the adjustment procedure exactly: initial torque, back off, final torque, lock. Wheel-end play out of spec kills a new drum quickly.
11. Adjust the brakes. Bring the shoes back up to spec and check pushrod stroke against the limit for that chamber size.
12. Mount wheels and torque in a star pattern, in stages. Use the manufacturer's figure, then re-torque after a shakedown run of roughly 50 to 100 miles.
13. Recharge, uncage, and test. Let the governor build to cut-out, typically in the 120 to 135 psi band, with a healthy system sitting around 120 psi fully charged and cutting back in near 100 to 110 psi; the low-air warning should clear well above 60 psi. Release the caging bolts, then make low-speed stops and check for pull, drag, or noise.

Matching drums across an axle

Always replace drums in pairs on the same axle. Two drums with different bore diameters or wall thicknesses will not do equal work. The result is brake imbalance: one side does more, gets hotter, fades sooner, and the truck steers under braking. Mixing lining friction ratings left and right causes the same pull.

Balance matters across the whole vehicle too: on a tractor-trailer, mismatched foundation brakes show up as a trailer that grabs early, or a tractor doing the trailer's work and cooking its own drums. VADEN Original's heavy-duty brake lining range covers the common axle and drum combinations, which makes keeping a fleet on one friction spec easier.

Bedding in and the first week

Fresh linings contact only a fraction of their surface at first, so stopping distance can be slightly longer until the pair seats. Bed them with moderate, repeated stops from low speed rather than one hard stop that glazes the lining. Two checks belong on the calendar straight after: re-torque the wheel fasteners, and re-check adjustment, because linings settle and stroke drifts in the first hundred miles. Automatic slack adjusters should take that slack up themselves — if one does not, the adjuster or the cam is the fault, not the new drum.

Common mistakes that ruin new drums

• Leaving the rust preventative on. The coating glazes the lining and the truck comes back with weak brakes.
• Reusing tired return springs. Weak springs let the shoes ride the drum, which cooks a new drum in weeks.
• Ignoring a wheel seal weep. Oil on the friction surface means drum and shoes both go in the bin, again.
• Skipping the cam bushings. A loose cam lets the shoe cock in the drum, giving tapered lining wear and a bell-mouthed drum.
• Guessing at wheel torque. Under-torqued fasteners loosen; over-torqued studs distort the mounting face.
• Not re-checking stroke. A chamber past its stroke limit is an out-of-service defect at roadside, new drums or not.

Torque figures, bearing adjustment procedures, discard limits, and stroke limits vary by axle maker and model year. The numbers on the part and in the manufacturer's current service manual govern — treat any general figure here as a cross-check, not a spec.

How often drums need replacing

There is no universal mileage figure. Drum life on a linehaul tractor runs to hundreds of thousands of miles; the same drum on a refuse truck may not see a fifth of that. Stop frequency, load, terrain, and how much work the engine brake takes off the service brakes set the interval, so the answer is measurement, not mileage — gauge the drums whenever the wheels are off.
