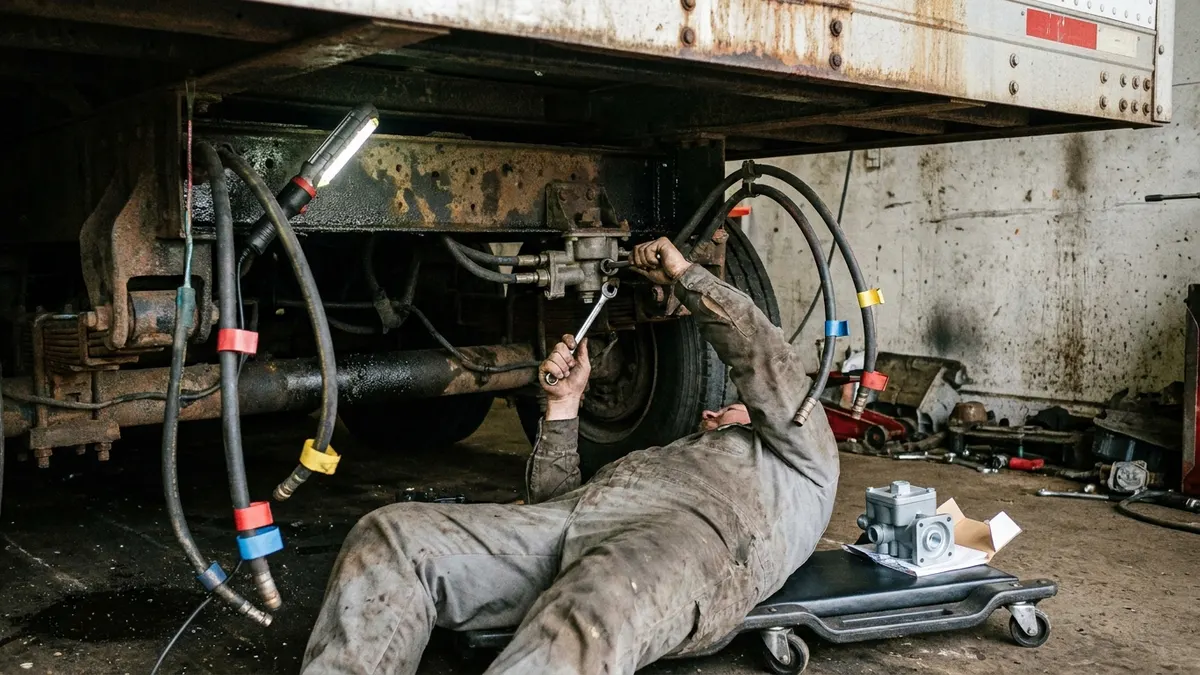

airbrakecompressorA failing air brake relay valve gives itself away in four main ways: the brakes on the axle it feeds are slow to release or drag, air hisses continuously from its exhaust port, that axle applies late or unevenly, or the system bleeds down overnight through a leaking seat. Because a relay valve is a local, air-piloted valve serving one axle group, its faults stay local — one axle behaves differently while the compressor still cuts out normally around 120-135 psi and cuts back in around 100-110 psi. That pattern of "one axle is odd, everything else is fine" is the fastest way to separate a relay valve problem from a compressor, governor, or foot valve problem.
Why relay valve failures look the way they do
The treadle valve sits in the cab; the rear brake chambers are fifteen to thirty feet behind it. Pushing full application air that distance through a small line would be far too slow, so the treadle sends only a small pilot signal down the control line. That signal drives the relay valve's piston down, closing the exhaust and opening the inlet, and the valve feeds the chambers with a large volume of air taken from the reservoir a few feet away. On release the signal drops, the piston lifts, and the chamber air dumps through the valve's own exhaust port.
A relay valve moves volume and controls timing; it does not generate pressure. That is why its failures read as lag, drag, and leaks rather than sudden brake loss. For internals and port markings, see our air brake relay valve reference.
The symptoms technicians actually see
1. Slow release or dragging brakes on one axle
The most common complaint. If the exhaust seat is gummed with compressor oil, the piston is sticking in a corroded bore, or the exhaust port is blocked by a stiffened deflector, mud, or ice, the chambers bleed down slowly and the linings stay in light contact. You will smell hot drums after a run, usually on one axle only. Confirm before condemning the valve — brakes that will not release are just as often a seized S-cam, an over-adjusted slack adjuster, or a collapsed hose.
2. A steady leak at the exhaust port
Where the leak shows up in the brake cycle tells you which seal has gone. With the brakes released, a continuous exhaust leak means the inlet seat is passing reservoir air. With the brakes applied and held, a leak at the same port normally means the piston seal or exhaust seat is passing. Service literature allows only a trace — a commonly published OE limit is roughly a one-inch soap bubble in three seconds — so check the figure for your part number.
3. Brake lag on that axle
A relay valve needs only a few psi of control signal to crack open, commonly in the 2-4 psi range, and some part numbers use a different crack pressure deliberately to balance tractor and trailer timing. A contaminated or corroded valve needs more signal before it opens, so its axle applies a beat behind the front brakes.
4. Uneven application, pulling, and uneven lining wear
An axle that applies late, applies weakly, or holds on after release does not share the work evenly. Over a few thousand miles that reads as linings wearing at very different rates axle to axle, or drums running at very different temperatures. Pulling side to side on the same axle is rarely the valve, since one relay feeds both wheel ends through equal-length hoses.
5. Delivery pressure that will not follow the pedal
Delivery should track control pressure closely through the whole range — within a few psi at any pedal position, and up to full reservoir pressure with the system fully charged at around 120 psi. If delivery lags badly, tops out well below control, or creeps upward while you hold a steady pedal, the valve is no longer metering correctly.
6. Pressure that bleeds down overnight
A relay valve with a leaking inlet seat drains the reservoir through its own exhaust whenever the truck sits. Come back to a system well below cut-in with no obvious fitting leak, and the relay valve exhaust ports are among the first places to soap.
7. Spring brakes slow to release
Where a spring brake relay valve controls the parking chambers, a sticking valve delays release of the springs. Since spring brakes begin applying somewhere in the 20-45 psi band as pressure falls, a valve holding those chambers partly exhausted can leave a truck dragging its parking brakes on a fully charged system.
Symptom-to-cause quick reference
| Symptom | Likely fault in the valve | Confirming test |
|---|---|---|
| Drag or slow release, one axle | Restricted exhaust, sticking piston | Watch pushrods on release; check port is clear |
| Hiss with brakes released | Inlet seat passing | Soap exhaust, no application |
| Hiss only while brakes applied | Piston seal or exhaust seat | Soap exhaust, pedal held down |
| Axle applies late | High crack pressure, contamination | Gauge control and delivery together |
| Delivery low or creeping | Worn metering seats | Partial applications, compare gauges |
| Overnight pressure loss | Inlet seat passing | Soap exhaust after the truck sits |
| Springs slow to release | Spring brake relay sticking | Time release against a known-good axle |
How to test a relay valve on the truck
- Chock the wheels, charge to governor cut-out, and shut the engine down.
- Brakes released, soap the exhaust port. Sustained bubbling points to the inlet seat.
- Have a helper hold a full application. Soap the exhaust again, then the fittings and body split line. A leak that appears only now points to the piston seal or exhaust seat.
- Tee a gauge into the control port and another into a delivery port — many valves have a plugged test port for this. Make partial applications: delivery should follow control within a few psi, then hold steady.
- Release and watch the chamber pushrods. They should snap back; a rod that creeps home is the drag symptom in front of you.
- Crack the control line at the valve and apply the treadle. Strong air there proves the signal is arriving, moving the fault to the valve rather than the plumbing upstream.
- Inspect the exhaust port for a hardened deflector, ice, mud, or nesting debris before ordering parts.
- If it still leaks or lags, replace it. Our relay valve replacement walkthrough covers port marking, sealant, and post-fit leak checks.
What imitates a bad relay valve
- Water and compressor oil carried past a tired air dryer. Oil swells seals and varnishes seats, and it will kill the replacement valve too.
- A kinked, chafed, or frozen control line, which produces the same lag and weak application as a high crack pressure.
- Foundation brake faults — seized cam bushings, weak return springs, over-adjusted slacks — producing drag no valve can cure.
- A leaking foot valve or quick release valve, either of which can put air into the control circuit when it should sit at zero.
Before replacing any valve for a drag complaint, back the slack adjusters off and roll the wheel by hand. If it still drags with the pushrod slack, the fault is in the foundation brake, not the air circuit.
Rebuild or replace
Most shops replace rather than rebuild. The valve is inexpensive against the labour of pulling it twice, and once oil has attacked the elastomers a clean-and-reseat rarely holds. Match port configuration, crack pressure, and thread sizes to the original part number rather than to the picture — outwardly similar Bendix, Wabco, Knorr-Bremse, Haldex, and Midland style valves differ in exactly those details, and a catalogue of OE-grade relay valves listed by OE cross-reference makes that lookup quick. Then fix whatever put oil or water into the valve, or you will do this job again next season.
