Air Suspension Not Leveling on a Truck or Trailer: How to Find the Fault

When a truck or trailer will not level itself — sits low, sits high, leans to one side, or takes far too long to come up after kneeling — the fault is almost always in one of five places: the air spring, the leveling valve, the linkage between them, a dump valve or dash control stuck in exhaust, or a restricted supply line feeding the circuit. The fastest way to name it is to read the stance the vehicle is taking, confirm the suspension circuit actually has air in it, then use the valve arm itself as a test tool. Worked in that order, the failed part is normally identified before any part is ordered, with nothing more than a soap bottle, a tape measure and a plug.

Read the stance before you touch anything

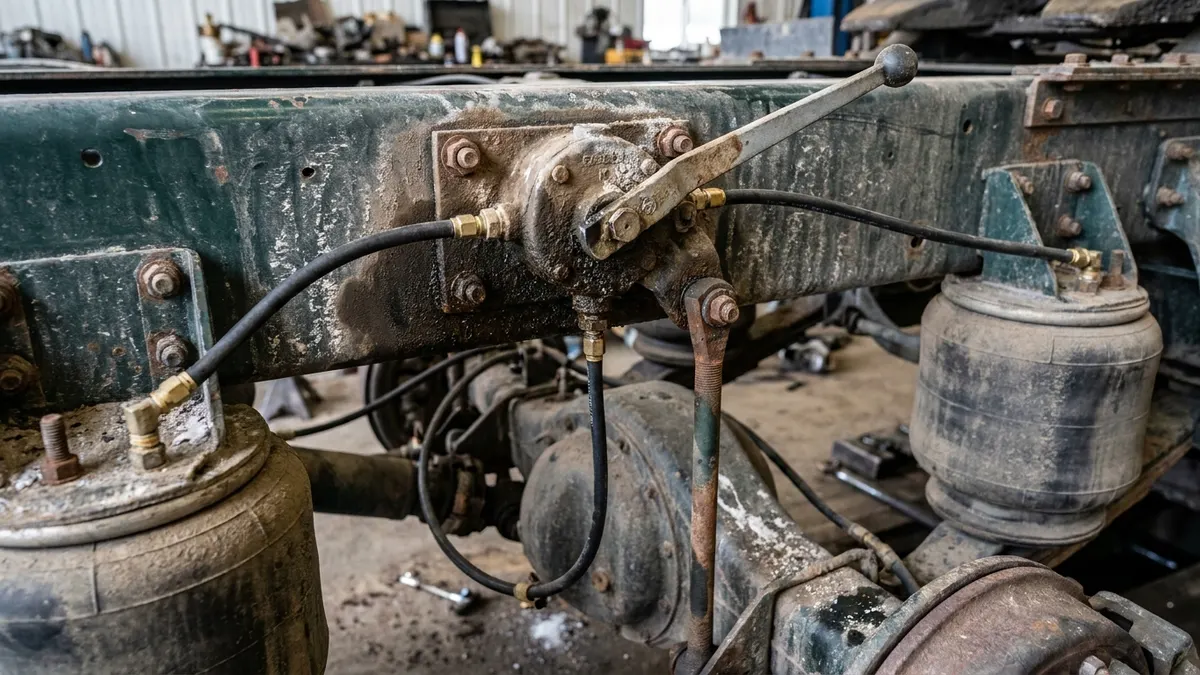

Air suspension is pneumatic, and the leveling valve — also called the height control valve — is a simple three-position mechanical valve: fill, neutral, exhaust. A link rod ties its arm to the axle. When the frame drops relative to the axle the arm rotates and the valve admits air; when the frame rises the arm rotates the other way and the valve exhausts. In between there is a deliberate neutral dead band of a few degrees so the valve does not chase every bump. That dead band is why a bent arm, a slipped arm or a worn link rod bushing produces a standing height error the valve will never correct — as far as the valve is concerned, the chassis is already at the right height.

On most valves, raising the arm fills and lowering it exhausts, but confirm the direction for the valve actually fitted before drawing conclusions. Note too that many height control valves have a built-in time delay of several seconds before they act. Do not condemn a valve for being slow until you have held the arm through the full delay.

Step 1: prove the supply before you blame the suspension

Charge the vehicle and let the governor reach cut-out, typically 120 to 135 psi, with cut-in around 100 to 110 psi; a healthy system in normal service sits near 120 psi. The suspension circuit is fed downstream of the brake reservoirs through a pressure protection valve, so that a ruptured air spring cannot empty the service brake supply. That valve closes as system pressure falls — commonly somewhere in the 60 to 80 psi band, but confirm the figure against the vehicle specification. Below that point the suspension gets nothing, and a dead circuit looks exactly like a dead valve.

If the system will not hold pressure at all, stop diagnosing the suspension and find the leak first. A large suspension leak drags the whole system down: the low-air warning device activates around 60 psi and the spring brakes will apply somewhere in the 20 to 45 psi range as the reservoirs empty.

Step 2: measure both sides against spec

Park on level ground, fully charged, brakes released. Measure at the OEM check point — usually axle seat to frame rail, or a marked dimension on the suspension — on both sides and at each axle. Most manufacturers allow only a small tolerance, commonly on the order of a quarter inch (6 mm), side to side and against nominal. Write the numbers down. A vehicle that is uniformly low is a supply or valve problem; a vehicle that is low at one corner is a spring, line or fitting problem until proven otherwise.

Step 3: inspect the linkage before condemning the valve

Look for a bent arm, an arm that has slipped on the valve shaft, perished rubber grommets in the link rod ends, a cracked mounting bracket, or a rod that somebody has "adjusted" in the past to mask a sagging spring. Grip the rod and check free play: any slack there translates directly into ride height error and into hunting. A disconnected rod normally leaves the arm hanging in full fill or full exhaust, which is why a dropped link is so often mistaken for a failed valve.

Step 4: use the valve arm as a test tool

Disconnect the link rod at the arm so chassis movement cannot move it, then work through three positions:

1. Fill. Move the arm to the fill position and hold it for ten to fifteen seconds. The chassis should rise steadily. No rise means the fault is upstream: supply pressure, pressure protection valve, a restricted or collapsed line, or a valve that will not open.
2. Neutral. Return the arm to centre and hold it. The rise should stop and the height should hold. If it keeps rising, the valve is not closing internally.
3. Exhaust. Move the arm down and hold. The spring should vent audibly and the corner should settle. Nothing at the exhaust port means a blocked or frozen port, or a seized spool.

Step 5: the bypass check that separates a leaking valve from a leaking bag

This is the test that decides which of the two most frequently replaced parts is actually at fault. With the system charged and the arm held in neutral, listen at the valve exhaust port. A steady escape there, with the arm in neutral, means air is passing the valve internally and the valve is the leak.

If the exhaust port is quiet but the corner still settles, isolate the spring. Disconnect the delivery line at the valve, plug the bag-side line with a suitable plug, recharge that spring and leave it. If the spring still goes down with the line capped, the leak is in the air spring, the line or a fitting. If it holds capped but settles with the valve connected, the leak is inside the valve or at its delivery port. Then confirm visually: soap the whole assembly at ride height — bead area, clamp ring, piston, and every fitting — because a crack in the flex area of a spring can close up when the spring is deflated.

Step 6: dump valves, dash controls and electronic systems

Before blaming anything expensive, confirm the manual dump or kneel control is not left in the exhaust position and that its solenoid is not stuck. On electronically controlled air suspension (ECAS), the mechanical valve is replaced by height sensors and a solenoid valve block under ECU control, as fitted on Wabco/ZF, Knorr-Bremse and OEM systems. The symptoms are identical but the diagnosis is electrical: read fault codes first, then check the sensor linkage, which suffers exactly the same bent-arm and worn-bushing failures. Do not adjust an ECAS chassis mechanically until the calibration routine has been run with the diagnostic tool.

After the repair

Fit either a repair kit or a matched heavy-duty height control valve to the correct OE specification for the chassis, including the right delay characteristic and port configuration. Then set ride height with the vehicle level and fully charged, cycle the suspension fully up and down, and re-measure — a height set on a suspension that has not been cycled will read wrong. Re-check both sides and soap every joint you opened at full pressure.

Never work under a vehicle supported only by air springs. Chock the wheels, apply the parking brakes and support the frame on stands before going underneath. A spring or line that lets go while you are under the chassis drops it instantly.
