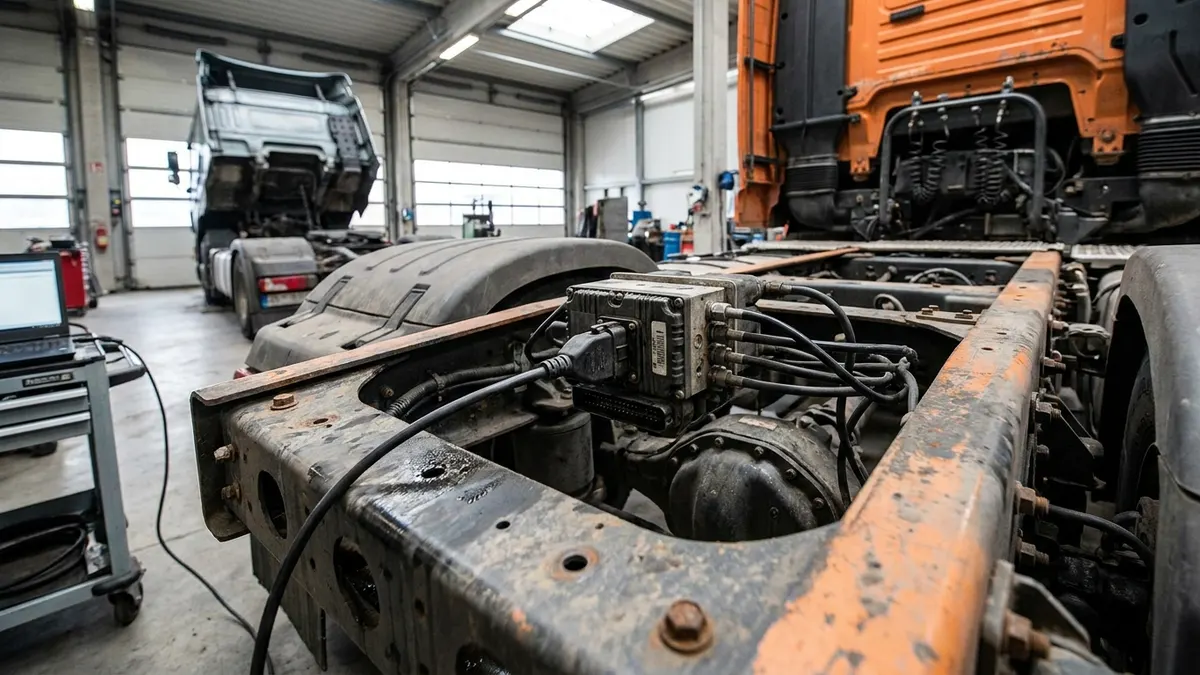

ECAS Solenoid Valve: How the Block Works and Why It Leaks

An ECAS (Electronically Controlled Air Suspension) solenoid valve block is the electro-pneumatic valve assembly that replaces the mechanical leveling valve on an air-suspended axle. It does one job: on command from the ECAS electronic control unit, it connects each air spring circuit to reservoir pressure (raise), to atmosphere through the exhaust port (lower), or to nothing at all (hold). All of the decision-making sits in the ECU and the height sensors; the block itself is nothing more than a group of on/off pneumatic valves sharing one body, one supply port and one exhaust.

What the block replaces

A mechanical leveling valve is a linkage-driven spool. The axle moves, the arm rotates, and the valve ports air in or out until the arm returns to neutral. It is dependable, but it is slow, it knows only one ride height, and it has no idea what road speed, load or the opposite side of the vehicle is doing. The ECAS block trades that linkage for solenoids and moves the decision into software. Height sensors report the real axle-to-frame distance, the ECU compares it with the stored ride height, and it pulses the relevant solenoids until the error closes. Because the decision is electronic, the same hardware can hold several ride heights, kneel a bus, raise a trailer to a dock, lock out above a set road speed, and control a lift axle.

Which solenoid does what

Layouts vary between Wabco/ZF, Knorr-Bremse and Haldex designs and between tractor, trailer and bus applications, but nearly every block follows the same pattern: one central supply and exhaust element, plus one dedicated solenoid per controlled circuit.

The three commands fall out of that table. Raise: supply solenoid energized plus the circuit solenoid for the axle or side being raised. Lower: supply solenoid de-energized so the gallery is open to exhaust, then the circuit solenoid energized so the air spring can dump through it. Hold: nothing energized at all, so the 2/2 circuit valves close on their springs and trap the pressure in the air springs. That last point matters for diagnosis: with the ignition off, a healthy block holds every circuit shut with no current flowing. Axle-to-axle and side-to-side leveling is simply the ECU running each circuit as its own loop against its own height sensor, so it can correct one side without disturbing the other.

How the ECU commands it

The ECU takes height sensor voltage, road speed from the vehicle CAN, ignition state, the dash switch or remote control unit, and on buses the door and park brake signals. It switches the solenoid coils to ground, normally in short pulses rather than one long energization, and watches the sensor between pulses so it does not overshoot. It also stores ride height parameters, a speed threshold above which the system returns to driving height, and fault memory per solenoid channel.

The suspension is fed from the brake system through a pressure protection valve, so the brake circuits always charge first. With the system fully charged around 120 psi, the governor cutting out in the 120 to 135 psi band and cutting back in at 100 to 110 psi, the suspension only draws once the brake reservoirs are satisfied. That protection works the right way round, but it does not make a leaking block harmless: a solenoid venting continuously is an unmetered air consumer that shortens compressor rest time and, in a bad case, drags system pressure down toward the low-air warning near 60 psi, with the spring brakes applying somewhere in the 20 to 45 psi range if it goes far enough.

The failure side

Electrical faults are as common as pneumatic ones. These blocks live on the chassis rail in the spray, and the connector is the weak point: green corrosion on the pins, a cracked seal, or a harness chafed on a crossmember will give an intermittent circuit that the ECU logs as open or shorted. Clean and test the connector before condemning the valve. A block that passes an actuator test electrically but still will not move the axle is a pneumatic problem; one that does not click at all is usually not.

Repair kit or replacement

A repair kit is the right call when the body is sound and the fault is on the outside of the valve work: port O-rings and seals, a blocked or damaged exhaust silencer, a connector seal, or an individual solenoid coil or cartridge where the manufacturer releases it separately. Contamination sitting on a seat can sometimes be cleaned and resealed successfully, provided the seat itself is undamaged.

Replace the block when the seats are pitted or eroded, when an internal cross-leak survives cleaning, when the bore is corroded or the unit has been submerged, or when the assembly carries an integrated ECU that is not serviced separately. Replacement is also the honest answer on older blocks where internal parts are no longer supplied. Whichever route you take, match the unit by OE reference, port configuration, number of controlled circuits and connector type, and remember that a physically identical block from a different specification can fit and still misbehave because of the parameter set. VADEN lists ECAS solenoid valve assemblies by OE reference number so the block can be cross-checked against the number on the housing before it is ordered. After fitting, calibrate ride height with a diagnostic tool; a new block on old parameters will level to the wrong figure.

Fix the air, not just the valve

Most contaminated ECAS blocks are a symptom. Water and oil carried past a saturated desiccant cartridge or a worn compressor migrate straight into the suspension circuit and settle on the seats. Before signing the job off, confirm the air dryer is purging properly, check the reservoirs for moisture and oil, and deal with an oil-passing compressor. Otherwise the replacement block fails the same way in the same season. If the vehicle is still not sitting level after the block is proven good, work back through the height sensors, linkages and air springs before buying another valve.

Never work under a vehicle supported only by air suspension. An ECAS block can vent a circuit the moment the ignition is switched on or the ECU runs a self-test. Support the chassis mechanically.
