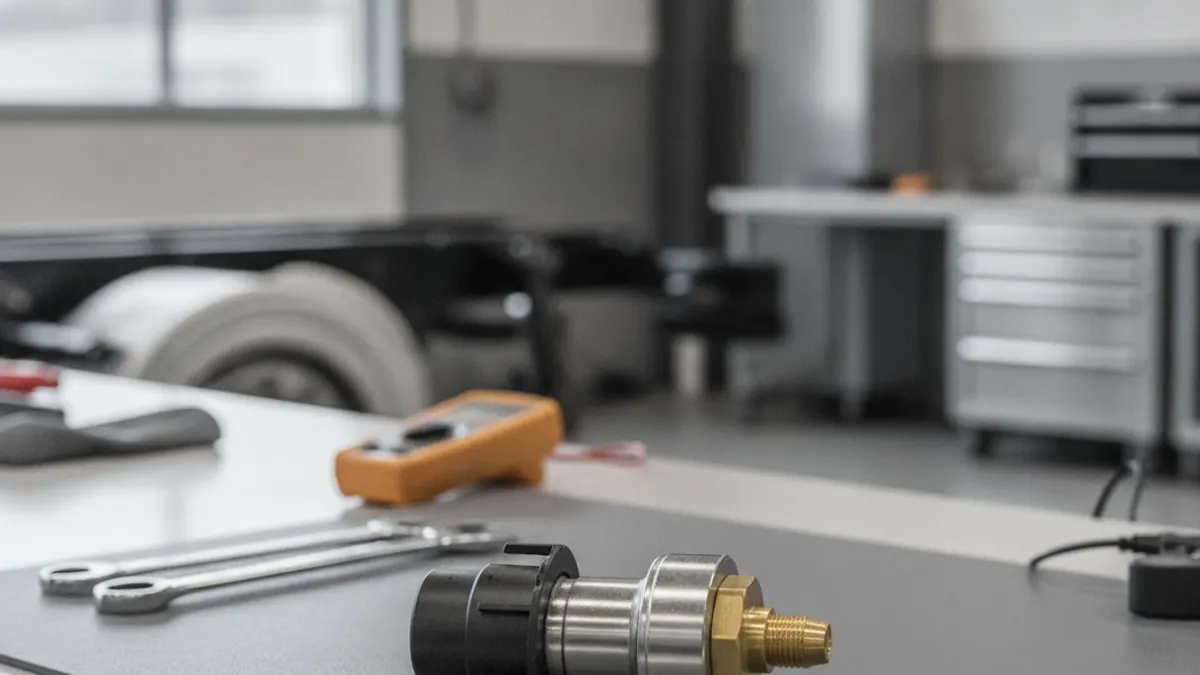

Air Brake Pressure Switch: How It Works and How to Test It

An air brake pressure switch is a pneumatic-to-electric device: it senses air pressure in a reservoir or brake line and opens or closes an electrical circuit at a set threshold. On a truck, tractor, bus or trailer the two you meet most often are the low-air warning switch, which lights the dash lamp and buzzer when reservoir pressure falls to roughly 60 psi, and the stop-lamp switch, which closes when the driver applies the foot valve and lights the brake lamps. This is a pneumatic system, not a car's hydraulic brakes - the switch threads into a port that sees dry compressed air from a reservoir, a delivery line, or a valve body.

How an air brake pressure switch works

Inside the housing is a diaphragm or small piston loaded by a calibrated spring, sitting against a set of electrical contacts. Air entering the port pushes the diaphragm; when pressure overcomes the spring, the contacts change state, and when pressure falls below the reset point the spring returns them. Two details matter in the shop:

• Normally open vs normally closed. A stop-lamp switch is normally open - no application air, no brake lights. A low-air warning switch is normally closed, so with the system dumped the light is on, and charging the system opens the contacts and puts it out.
• Hysteresis. Trip point and reset point differ. A warning switch may trip near 60 psi on the way down but not reset until pressure climbs several psi higher. That gap is designed in, not a fault.

Where the switches sit

Locations vary by chassis, but the pattern holds: warning switches read reservoir pressure, stop-lamp switches read a line pressurised only during a service application.

On conventional heavy trucks the compressor is not switched electrically. The air brake governor loads and unloads it pneumatically, cutting out around 120-135 psi and cutting back in around 100-110 psi. On a slow-charging complaint, the governor and unloader are likelier suspects than any electrical switch.

Symptom: the low-air warning will not clear

This is the number one pressure-switch complaint. The driver builds air, the gauges show a fully charged system near 120 psi, and the lamp and buzzer stay on. Work it in this order:

1. Trust a test gauge, not the dash. Thread a known-good gauge into a reservoir test port. A dash gauge reading high while the tank is genuinely low is a real failure mode, and the switch is then doing its job.
2. Confirm both circuits. Primary and secondary each have their own warning provision, and one low circuit holds the warning on while the other reads full.
3. Unplug the switch. With the system charged, disconnect the connector. If the lamp and buzzer go out, the switch is stuck closed - replace it. If they stay on, you have a circuit shorted to ground or a failed dash module. Reconnect before the truck moves.
4. Check the wire, not just the switch. A chafed lead rubbing a frame rail or reservoir band grounds the circuit and mimics a stuck switch perfectly. Wiggle-test the whole run.
5. Check the port for water and sludge. A switch fed by a reservoir full of condensate or oil gums up and stops responding - a symptom of the bigger problem below.

If the lamp still will not go out, work the full fault tree for a low-air warning light that will not turn off, which covers the dash-side electrical causes as well as pneumatic ones.

Never bypass or unplug a low-air warning switch to silence a buzzer and dispatch the truck. The warning device is required equipment, and a vehicle without a working low-air warning is an out-of-service item at roadside.

Symptom: brake lights stay on, or never come on

Stop-lamp switches fail in both directions. Lamps stuck on with the pedal released means either welded or dragging contacts, or application air that is not fully venting - a lazy foot valve or a relay valve holding a few psi keeps a sensitive switch closed. Crack the line at the switch with the pedal released; if air escapes, the fault is upstream.

Lamps that never come on can be a failed switch, but check the simple things first: blown fuse, corroded connector, bad ground at the lamp housings, and real pressure at the switch port during a pedal apply. If the lamps are on and the wheels are hot, you are not chasing a switch - you are chasing brakes that will not release, with the switch reporting the trapped pressure holding them on.

How to test an air brake pressure switch

You need a multimeter with a continuity function and a way to sweep pressure at the port; on-truck, a charged reservoir and a slow drain do the job.

1. Disconnect the connector and put the meter across the switch terminals, or terminal to case on a single-pole grounded switch.
2. Charge fully and note continuity. A normally closed warning switch should read open at full pressure; a normally open stop-lamp switch should read open with no application.
3. Bleed slowly while watching a test gauge and the meter. Note where the state changes - a warning switch should trip in the low-60s psi range, not at 90 psi and not at 30 psi.
4. Recharge and note the reset pressure. Some spread between trip and reset is normal; a switch that never resets, or chatters across a wide band, is finished.
5. For a stop-lamp switch, hold a light service application, confirm the contacts close immediately, then release and confirm they open cleanly.
6. Fit the replacement to the maker's torque figure and sealant. Overtightening cracks a manifold or reservoir boss, and shredded PTFE tape migrates downstream into a valve.

Why switches fail: it is usually the air, not the switch

Pressure switches are simple and durable, so early failures almost always mean contaminated air reaching the diaphragm and contacts. Condensate corrodes the internals and freezes in winter; oil carryover from a worn compressor coats the diaphragm and leaves it sluggish, so the switch trips late or not at all.

That makes a repeat failure a diagnostic clue rather than a parts problem. Drain the wet tank and look at what comes out - milky water or oil staining a rag is not acceptable. Watch for a sharp dryer purge at governor cut-out; no purge, or a continuous leak from the purge valve, means the dryer is not working. If you are replacing switches more than once on the same unit, review the air dryer cartridge service history and inspect the compressor for oil passing. Keeping the supply side clean protects every downstream valve and switch, which is why fleets standardise on OE-grade air processing unit components rather than mixing whatever is on the shelf.

What a pressure switch will not fix

A switch reports pressure; it does not create it. If the truck will not build to a fully charged state near 120 psi, or bleeds down overnight, the fault lies in the compressor, governor, unloader, dryer or a leak. Spring brakes also begin to apply somewhere in the 20-45 psi range, so a system that keeps dropping parks itself before you finish diagnosing.

Verify thresholds and torque values against the current service manual for the specific chassis and valve maker. The ranges here are typical of heavy-duty commercial practice and are for orientation only.
